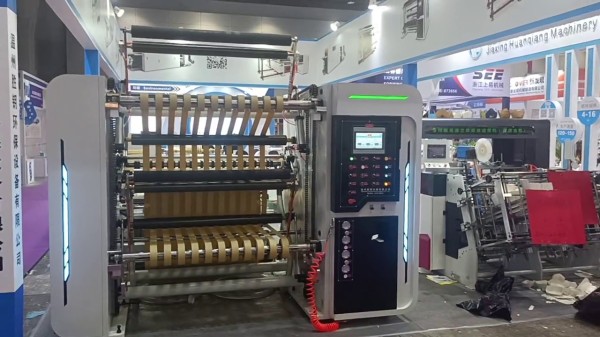

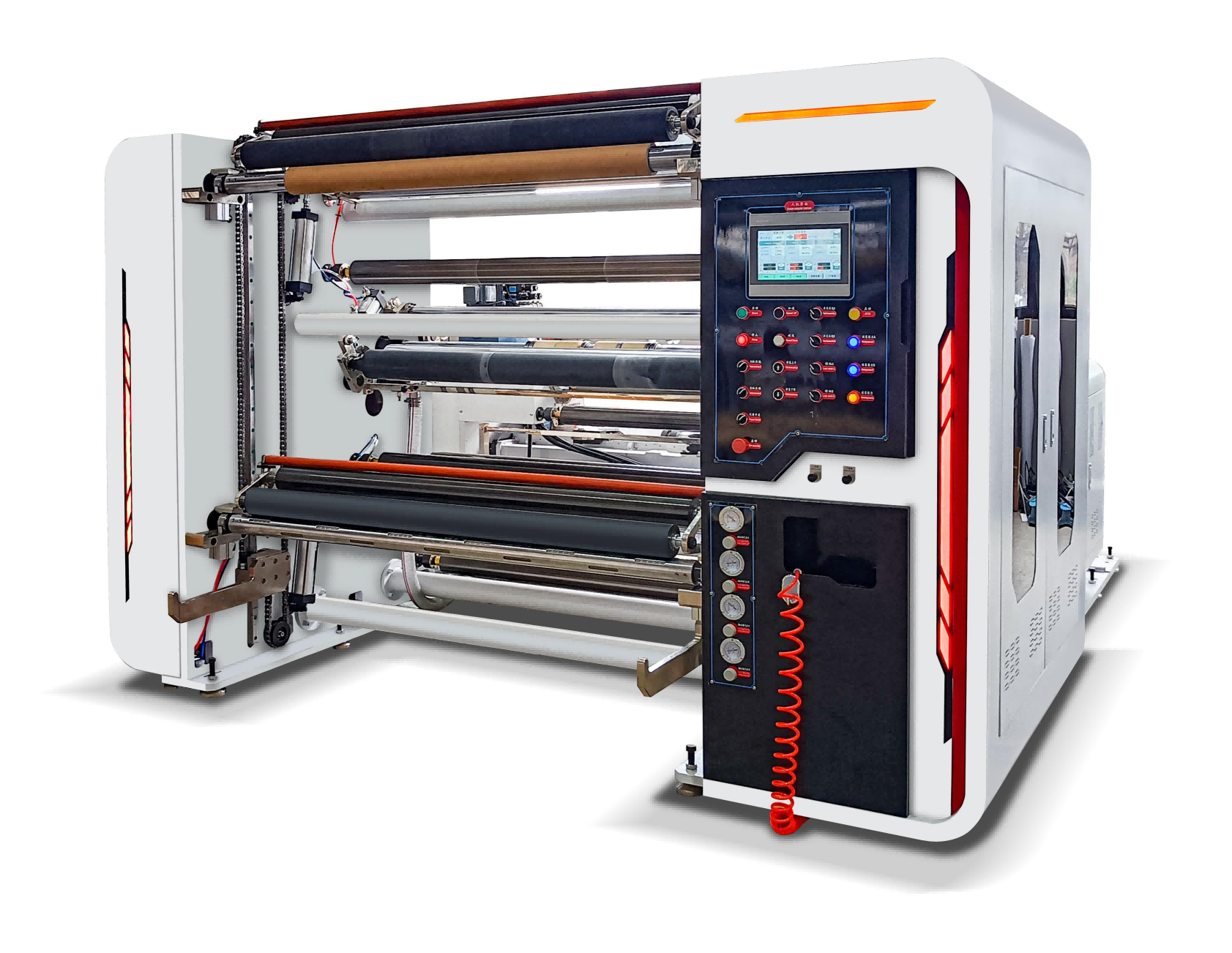

SYF-A電腦高速分切機

使用范圍及特點

本機適用于各種超大型卷材的分切，如50G/M2-300G/M2牛皮紙、白卡紙、淋膜紙、鋁箔、PVC塑料等卷材的分切、復卷等。

1.該機采用PLC觸摸屏，三電機矢量控制、自動錐度張力，中心卷取方式。主機采用變頻調速，保持加速中平衡運轉。

2.自動計米、報警功能。收卷采用A、B氣脹軸結構，卸裝操作方便。

3.放卷采用光電自動糾偏修正系統，使不規則材料能正常分切。

4.圓刀縱切廢邊自動排除裝置(吸風碎紙排除)。

5.液壓無軸自動上料(可配氣動式氣脹軸自動上料，選配)。

PERFORMANCE AND CHARACTERISTICS

This machine is used for slitting and rewinding various large rolling materials such as paper,(50g/m2-300g/m2)Kraft paper, coated paper, aluminum foil, PVC,plastic material,etc.

This machine adopts PLC touch screen control. Three motor vector control and automatic taper tension, central surface reeling.Frequency converter timing for main motor, keeping speed up and stable operation. lt has the functions of auto metering, automatic alarm, etc. Adopt Aand B pneumatic shaft structure for rewinding, easy for loading and unloading.

lt adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit.@Equipped with automatic waste film blowing device.

Hydraulic shaftless loading system (can use automatic loading by phneumatic as optional ).
